The best technology in multi-format cutting and folding

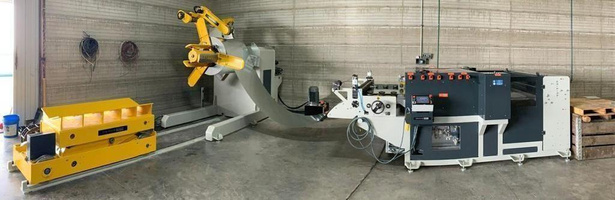

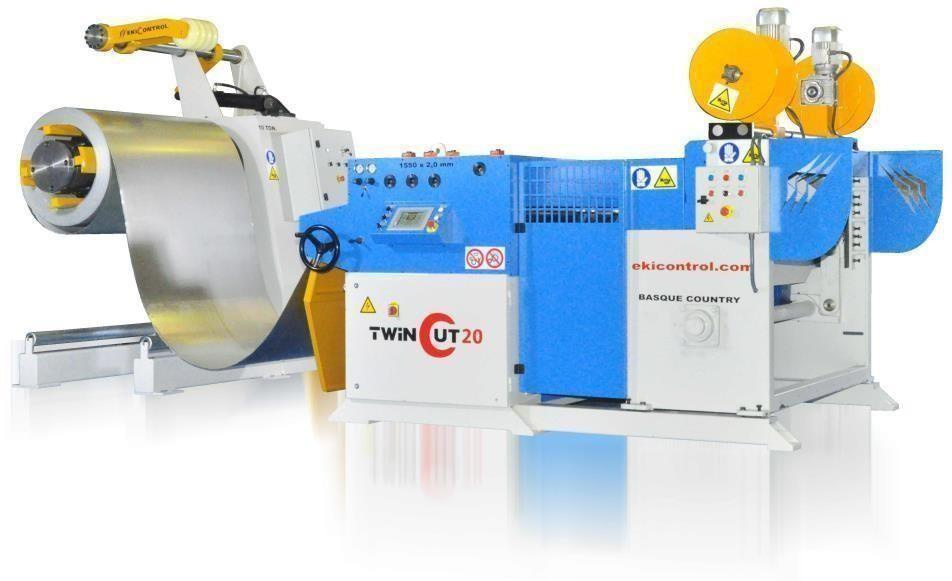

TWINCUT20 Multi-formslittercuttinglineand modelshear TWINCUT20DM10 59.056” x 0.079”
TWINCUT20
CAPABILITIES GENERAL TECHNICAL SPECIFICATIONS
MAXIMUM UNWINDER LOAD
Daily number of rolls running
Number of daily strightner rolls
Slitter axis cut daily
Speed Production
Air Presure
Aproximate installed power
Electric tensión
Word direction
10.000 Kg
2 superpuestos
7 (3 sobre 4)
2
0- 20 M/min
6 bar
15,5 Kw
400/440V-50/60Hz
Standard from left to right
TWINCUT20
CAPABILITIES GENERAL TECHNICAL SPECIFICATIONS
Maximum decoler load
Daily number of rolls running 100
Number of daily strightner rolls. 100
Cutting thicknesses
Speed production
Air presure
Aproximate installed power Electric tensión
Word direction
20.000 Kg
2 superpuestos
7 (3 sobre 4)
0.5 – 2.0 mm
0- 14 m/min
6 bar
15,5 Kw
4 0 0 /440V-50 /60Hz
Standard from left to right

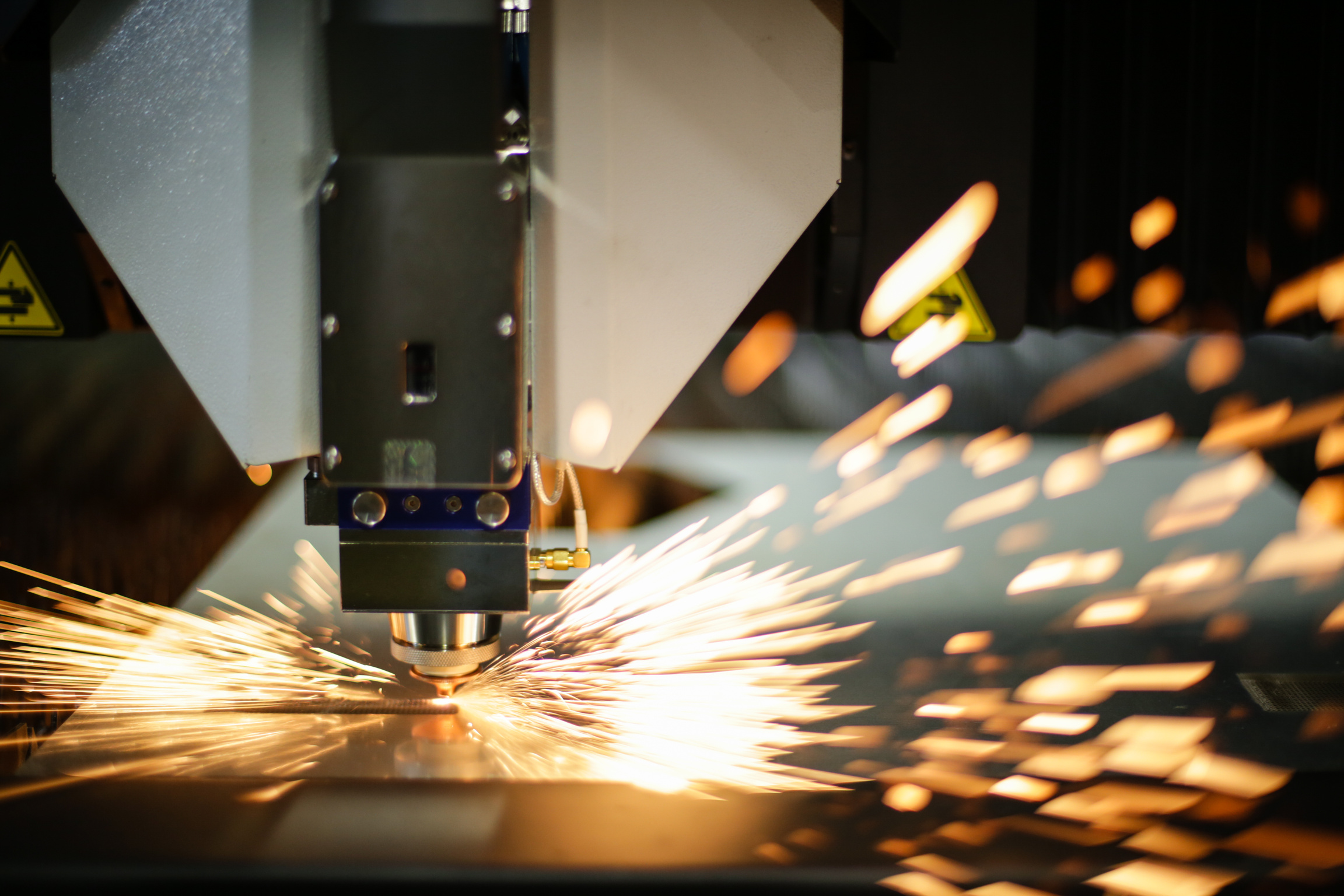

Bodor Modelo C3 de 6,000Kw
SHEET FIBER LASER CUTTING MACHINE
Material
Carbon steel
Stainless steel
Aluminum
Bodormodel C3 6000 kW
Cutting Materials
Cutting thickness From 0.5 mm Until 12.7 mm
From 0.5 mm Until 12.7 mm
From 0.5 mm Until 12.7 mm
Gas O2 and N2
N2
N2
Maximum
cutting area
120” (3048 mm)
x 60” (1524 mm)
X/Y axis positioningaccuracy
±0.05mm/m

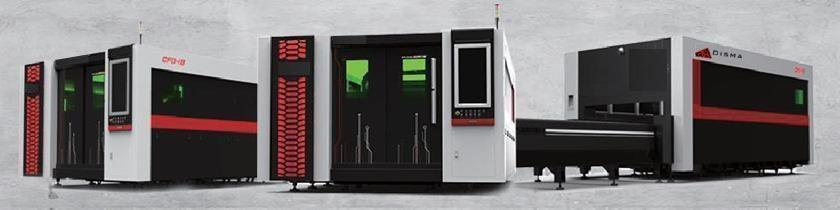

FIBER OPTIC CUTTING LASER
DI 3015-2 6000W
Model No.
Useful cut área Source and power
Max runningspeed Potitioning tolerance Repeatability tolerance
Maximum speed
Machine settings
Machine weight
Power settings
Continous work cycle
DI 3015-2-6000W-RAYCUS
3050*1550 MM RAYCUS 6000W
140m/min
0. 03−0. 05MM
0. 02−0. 03MM
1.2G
Doble mesa con cubiertas
7500K GS
AC 380 V / 60 HZ
24hours

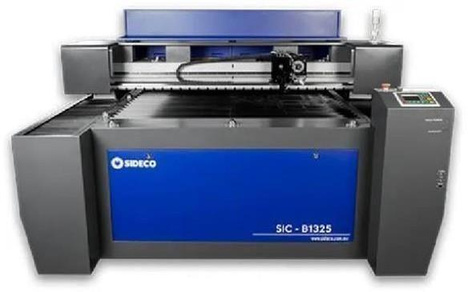

Slicer, brand Sideco SIC-B1325 CO2
Laser cutting of no-ferrous materials
••Acrylic cut:
From thicknesses 0.5mm until 15mm
•MDF cut:
From caliber 2.5mm until 12mm
•Area of operation
96” (2,440mm) x 48” (1,220mm)

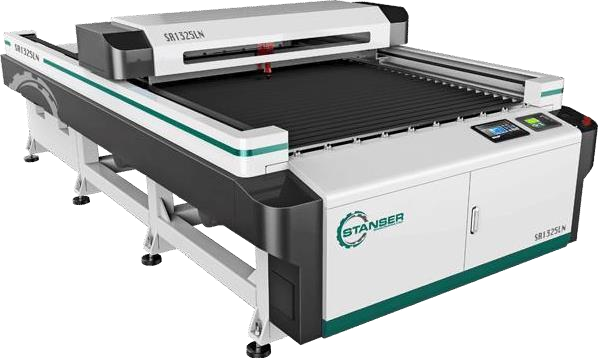

Laser CO2 SR1325LN
•Acrylic cut:
From thicknesses 0.5mm until 15mm
•MDF cut:
From caliber 2.5mm until 12mm
•Area of operation:
96” (2,440mm) x 48” (1,220mm)

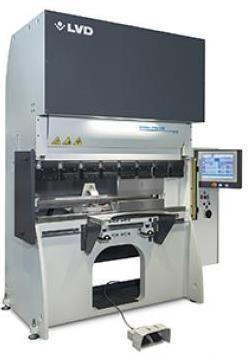

Bending machine Dyna-Press 40/15 LVD
SHEET METAL BEND
40 ton electric model that offers a working length
of 1,530mm offering a four-axis precision rear stop and the exclusive LVD CNC control of the touch-b touch screen.
Dyna-Press offers the flexibility of choice of tools. A wide range of upper and lower tools is available: four axis, universal, w or us style; for diez, universal, LVD ot us style.
SHEET METAL BEND

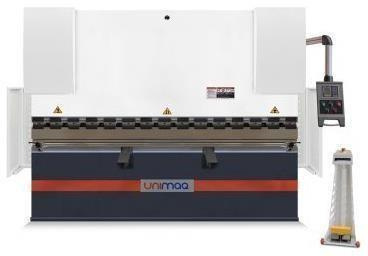

Unimaq folding machine of 60 Ton. 98” (2,500mm) cortain length
The Unnimaq Brand CNC bending machines have a reliable and easy way to use controller for quick programming of the parts with several folds or repetitive parts.
The reinforced Steel structure eliminates the stress caused by vibrations and the same
time provides great rigidity.

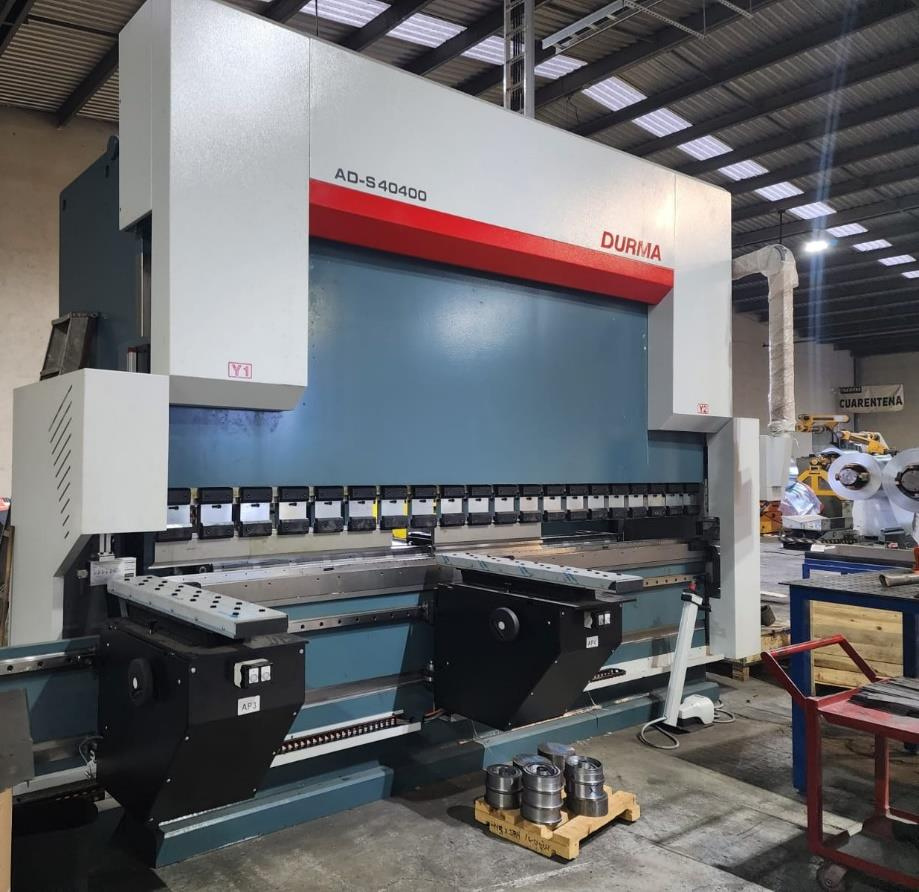

Durmaads-s40400
Sheet metal bending
Durmaads-s40400
Durma-PressTechnicalSpecifications
Force Working length
Top tool
Bottom tool
400 Ton. 4050 mm
Europeanstyle/ Durma
Europeanstyle/ Durma
y-axis precision ±0.01 mm x-axis precision 0.05 mm

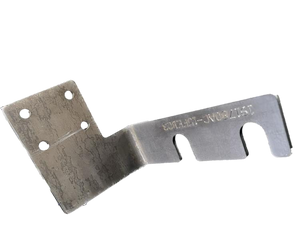

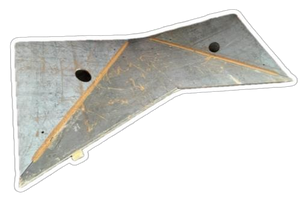

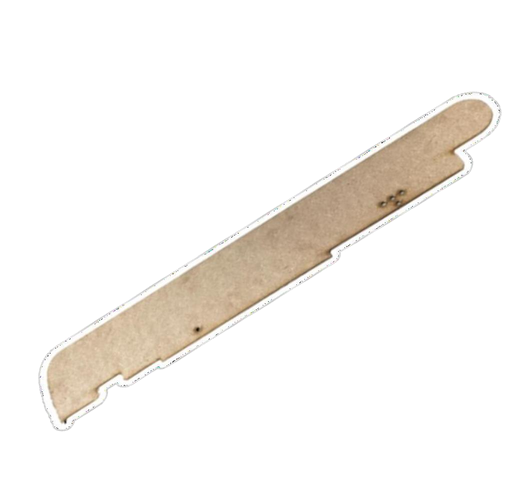

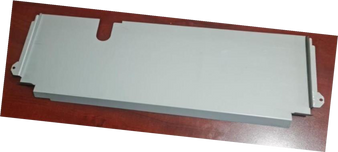

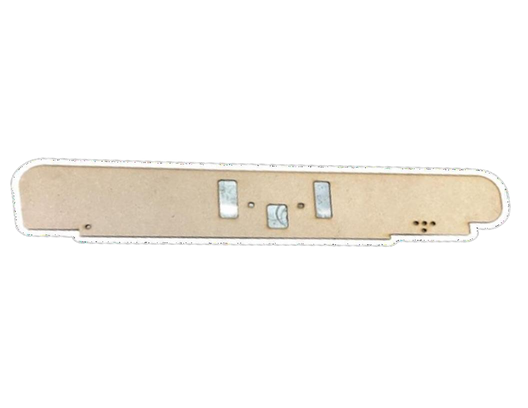

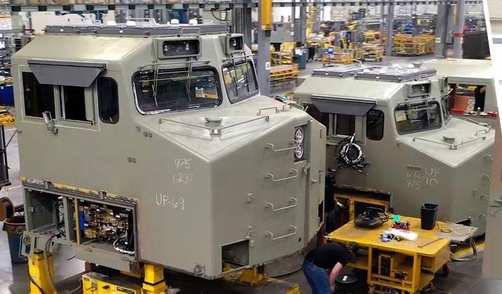

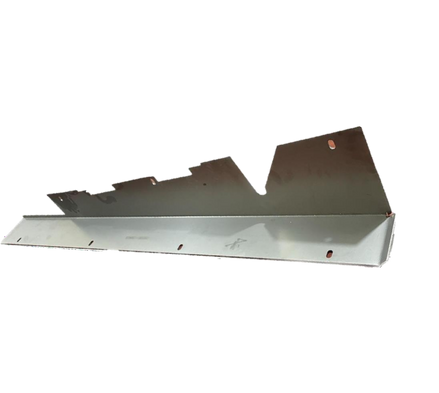

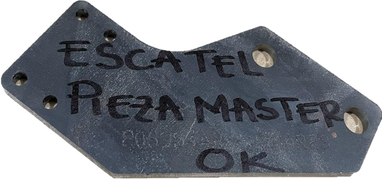

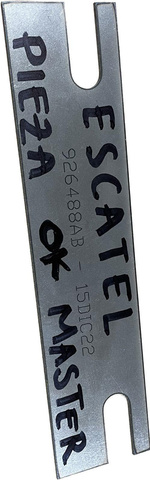

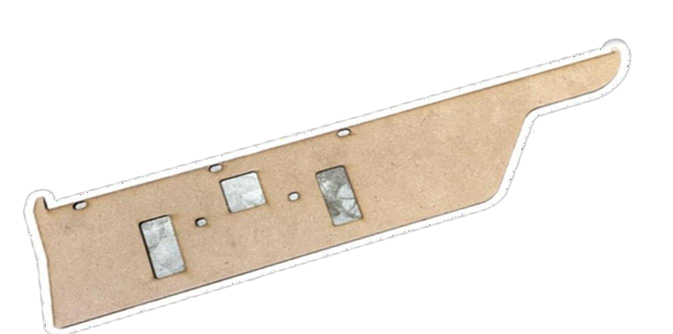

Ex. Of parts manufactureed by us.
Sheet metal bending

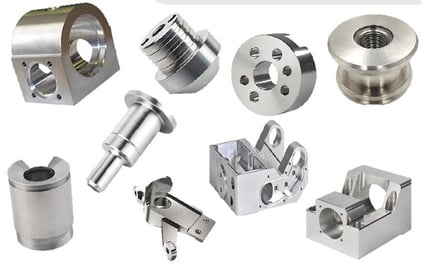

CNC Machining

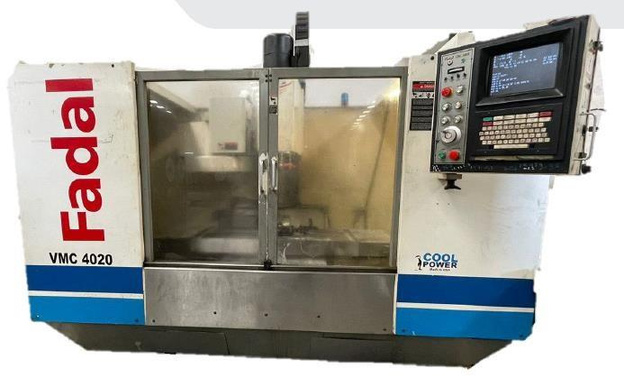

Vertical machining center 40" x 20" x 25“
(1016 x 508 x 635 mm) xyz
trave ls
•Full reliability and accuracy
• Vector drive spindle provides speeds to 6,000 rpm for high surface feed rates
CLIENTS
We’re currently working with Magna Formex, Mabe, New Process Steel, DongKwang, wabtec and Skyjack, we’ve negotiations with several companies that require this service
